APT/上海二工AD16-30JC指示灯参数说明

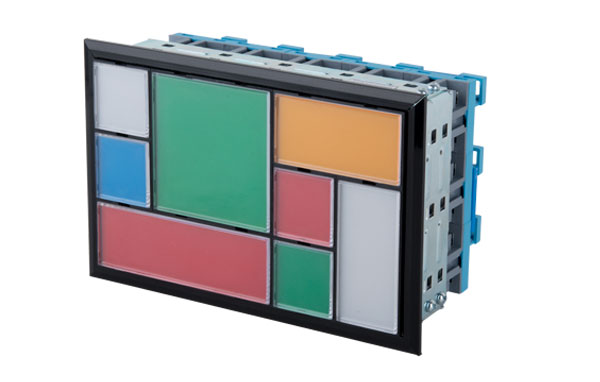

AD16-30JC组合指示灯采用开放式对流结构，辅以电路设计，整灯散热效果。采用LED芯片，整灯色泽亮丽均匀。组合灯可适用于船舶电工电子设备中做各种灯光指示信号与灯光执行信号之用的指示灯。
1， 组合灯有5种窗格形式的单灯：F、H、L、V、G，客户可根据自身要求加以组合。
F型：30×30mm；H型：30×60mm；L型：30×90mm；V型：60×30mm；G型：60×60mm。
2， 组合灯整体外观稳重大方，灯光色通透均匀，各单灯之间有黑色边框，间隔分明。
3， 组合灯外壳散热窗开孔面积大，组合后于水平、垂直方向都完全贯穿，保证了组合灯的可靠散热。
4， 组合灯安装简洁方便，只需断开电源即可在安装面板上从灯罩方向拆换灯珠。
工频耐压：2500V，1min
绝缘电阻：≥100MΩ
连续工作寿命：≥10000h
光亮度：≥120cd/m2
工作温度：-25℃～+55℃
储存温度：-25℃～+70℃
空气相对湿度≤95%
安装海拔高度 ≤2000m
APT/上海二工AD16-30JC指示灯型号一览
|
型号 |
型号 |
型号 |
型号 |
型号 |
|
AD16-30JC-0104 |
AD16-30JC-0501 |
AD16-30JC-0719 |
AD16-30JC-0605/D |
AD16-30JC-0701/D |
|
AD16-30JC-0106 |
AD16-30JC-0502 |
AD16-30JC-0720 |
AD16-30JC-0412/D |
AD16-30JC-0702/D |
|
AD16-30JC-0108 |
AD16-30JC-0503 |
AD16-30JC-0801 |
AD16-30JC-0602/D |
AD16-30JC-0703/D |
|
AD16-30JC-0101 |
AD16-30JC-0504 |
AD16-30JC-0802 |
AD16-30JC-0301/D |
AD16-30JC-0704/D |
|
AD16-30JC-0102 |
AD16-30JC-0505 |
AD16-30JC-0803 |
AD16-30JC-0302/D |
AD16-30JC-0705/D |
|
AD16-30JC-0103 |
AD16-30JC-0506 |
AD16-30JC-0805 |
AD16-30JC-0303/D |
AD16-30JC-0706/D |
|
AD16-30JC-0105 |
AD16-30JC-0507 |
AD16-30JC-0806 |
AD16-30JC-0304/D |
AD16-30JC-0707/D |
|
AD16-30JC-0107 |
AD16-30JC-0508 |
AD16-30JC-0807 |
AD16-30JC-0305/D |
AD16-30JC-0708/D |
|
AD16-30JC-0109 |
AD16-30JC-0509 |
AD16-30JC-0808 |
AD16-30JC-0306/D |
AD16-30JC-0709/D |
|
AD16-30JC-0110 |
AD16-30JC-0510 |
AD16-30JC-0809 |
AD16-30JC-0307/D |
AD16-30JC-0710/D |
|
AD16-30JC-0111 |
AD16-30JC-0511 |
AD16-30JC-0810 |
AD16-30JC-0308/D |
AD16-30JC-0711/D |
|
AD16-30JC-0112 |
AD16-30JC-0512 |
AD16-30JC-0811 |
AD16-30JC-0309/D |
AD16-30JC-0712/D |
|
AD16-30JC-0113 |
AD16-30JC-0513 |
AD16-30JC-0812 |
AD16-30JC-0310/D |
AD16-30JC-0713/D |
|
AD16-30JC-0114 |
AD16-30JC-0514 |
AD16-30JC-0813 |
AD16-30JC-0311/D |
AD16-30JC-0714/D |
|
AD16-30JC-0115 |
AD16-30JC-0515 |
AD16-30JC-0814 |
AD16-30JC-0312/D |
AD16-30JC-0715/D |
|
AD16-30JC-0116 |
AD16-30JC-0516 |
AD16-30JC-0815 |
AD16-30JC-0313/D |
AD16-30JC-0716/D |
|
AD16-30JC-0117 |
AD16-30JC-0517 |
AD16-30JC-0816 |
AD16-30JC-0314/D |
AD16-30JC-0717/D |
|
AD16-30JC-0118 |
AD16-30JC-0518 |
AD16-30JC-0817 |
AD16-30JC-0315/D |
AD16-30JC-0718/D |
|
AD16-30JC-0119 |
AD16-30JC-0519 |
AD16-30JC-0818 |
AD16-30JC-0316/D |
AD16-30JC-0719/D |
|
AD16-30JC-0120 |
AD16-30JC-0520 |
AD16-30JC-0819 |
AD16-30JC-0317/D |
AD16-30JC-0720/D |
|
AD16-30JC-0201 |
AD16-30JC-0920 |
AD16-30JC-0820 |
AD16-30JC-0318/D |
AD16-30JC-0801/D |
|
AD16-30JC-0202 |
AD16-30JC-1001 |
AD16-30JC-0901 |
AD16-30JC-0319/D |
AD16-30JC-0802/D |
|
AD16-30JC-0203 |
AD16-30JC-1002 |
AD16-30JC-0902 |
AD16-30JC-0320/D |
AD16-30JC-0803/D |
|
AD16-30JC-0204 |
AD16-30JC-1003 |
AD16-30JC-0903 |
AD16-30JC-0401/D |
AD16-30JC-0804/D |
|
AD16-30JC-0205 |
AD16-30JC-1004 |
AD16-30JC-0904 |
AD16-30JC-0402/D |
AD16-30JC-0805/D |
|
AD16-30JC-0206 |
AD16-30JC-1005 |
AD16-30JC-0905 |
AD16-30JC-0403/D |
AD16-30JC-0806/D |
|
AD16-30JC-0207 |
AD16-30JC-1006 |
AD16-30JC-0906 |
AD16-30JC-0404/D |
AD16-30JC-0807/D |
|
AD16-30JC-0208 |
AD16-30JC-1007 |
AD16-30JC-0907 |
AD16-30JC-0405/D |
AD16-30JC-0808/D |
|
AD16-30JC-0209 |
AD16-30JC-1008 |
AD16-30JC-0908 |
AD16-30JC-0406/D |
AD16-30JC-0809/D |
|
AD16-30JC-0210 |
AD16-30JC-1009 |
AD16-30JC-0909 |
AD16-30JC-0407/D |
AD16-30JC-0810/D |
|
AD16-30JC-0211 |
AD16-30JC-1010 |
AD16-30JC-0910 |
AD16-30JC-0408/D |
AD16-30JC-0811/D |
|
AD16-30JC-0212 |
AD16-30JC-1011 |
AD16-30JC-0911 |
AD16-30JC-0409/D |
AD16-30JC-0812/D |
|
AD16-30JC-0213 |
AD16-30JC-1012 |
AD16-30JC-0912 |
AD16-30JC-0410/D |
AD16-30JC-0813/D |
|
AD16-30JC-0214 |
AD16-30JC-1013 |
AD16-30JC-0913 |
AD16-30JC-0411/D |
AD16-30JC-0814/D |
|
AD16-30JC-0215 |
AD16-30JC-1014 |
AD16-30JC-0914 |
AD16-30JC-0413/D |
AD16-30JC-0815/D |
|
AD16-30JC-0216 |
AD16-30JC-1015 |
AD16-30JC-0915 |
AD16-30JC-0414/D |
AD16-30JC-0816/D |
|
AD16-30JC-0217 |
AD16-30JC-1016 |
AD16-30JC-0916 |
AD16-30JC-0415/D |
AD16-30JC-0817/D |
|
AD16-30JC-0218 |
AD16-30JC-1017 |
AD16-30JC-0917 |
AD16-30JC-0416/D |
AD16-30JC-0818/D |
|
AD16-30JC-0219 |
AD16-30JC-1018 |
AD16-30JC-0918 |
AD16-30JC-0417/D |
AD16-30JC-0819/D |
|
AD16-30JC-0220 |
AD16-30JC-1019 |
AD16-30JC-0919 |
AD16-30JC-0418/D |
AD16-30JC-0820/D |
|
AD16-30JC-0301 |
AD16-30JC-1020 |
AD16-30JC-0108/D |
AD16-30JC-0419/D |
AD16-30JC-0911/D |
|
AD16-30JC-0302 |
AD16-30JC-0601 |
AD16-30JC-0110/D |
AD16-30JC-0420/D |
AD16-30JC-0913/D |
|
AD16-30JC-0303 |
AD16-30JC-0602 |
AD16-30JC-0112/D |
AD16-30JC-0501/D |
AD16-30JC-0915/D |
|
AD16-30JC-0304 |
AD16-30JC-0603 |
AD16-30JC-0114/D |
AD16-30JC-0502/D |
AD16-30JC-0917/D |
|
AD16-30JC-0305 |
AD16-30JC-0604 |
AD16-30JC-0116/D |
AD16-30JC-0503/D |
AD16-30JC-0919/D |
|
AD16-30JC-0306 |
AD16-30JC-0605 |
AD16-30JC-0118/D |
AD16-30JC-0504/D |
AD16-30JC-1001/D |
|
AD16-30JC-0307 |
AD16-30JC-0606 |
AD16-30JC-0201/D |
AD16-30JC-0505/D |
AD16-30JC-1003/D |
|
AD16-30JC-0308 |
AD16-30JC-0607 |
AD16-30JC-0203/D |
AD16-30JC-0506/D |
AD16-30JC-1005/D |
|
AD16-30JC-0309 |
AD16-30JC-0608 |
AD16-30JC-0206/D |
AD16-30JC-0507/D |
AD16-30JC-1008/D |
|
AD16-30JC-0310 |
AD16-30JC-0609 |
AD16-30JC-0213/D |
AD16-30JC-0508/D |
AD16-30JC-1010/D |
|
AD16-30JC-0311 |
AD16-30JC-0610 |
AD16-30JC-0214/D |
AD16-30JC-0509/D |
AD16-30JC-1012/D |
|
AD16-30JC-0312 |
AD16-30JC-0611 |
AD16-30JC-0218/D |
AD16-30JC-0510/D |
AD16-30JC-1014/D |
|
AD16-30JC-0313 |
AD16-30JC-0612 |
AD16-30JC-0101/D |
AD16-30JC-0511/D |
AD16-30JC-1016/D |
|
AD16-30JC-0314 |
AD16-30JC-0804 |
AD16-30JC-0102/D |
AD16-30JC-0512/D |
AD16-30JC-0912/D |
|
AD16-30JC-0315 |
AD16-30JC-0613 |
AD16-30JC-0103/D |
AD16-30JC-0513/D |
AD16-30JC-0914/D |
|
AD16-30JC-0316 |
AD16-30JC-0614 |
AD16-30JC-0104/D |
AD16-30JC-0514/D |
AD16-30JC-0916/D |
|
AD16-30JC-0317 |
AD16-30JC-0615 |
AD16-30JC-0105/D |
AD16-30JC-0515/D |
AD16-30JC-0918/D |
|
AD16-30JC-0318 |
AD16-30JC-0616 |
AD16-30JC-0106/D |
AD16-30JC-0516/D |
AD16-30JC-0920/D |
|
AD16-30JC-0319 |
AD16-30JC-0617 |
AD16-30JC-0107/D |
AD16-30JC-0517/D |
AD16-30JC-1002/D |
|
AD16-30JC-0320 |
AD16-30JC-0618 |
AD16-30JC-0109/D |
AD16-30JC-0518/D |
AD16-30JC-1004/D |
|
AD16-30JC-0401 |
AD16-30JC-0619 |
AD16-30JC-0111/D |
AD16-30JC-0519/D |
AD16-30JC-1006/D |
|
AD16-30JC-0402 |
AD16-30JC-0620 |
AD16-30JC-0113/D |
AD16-30JC-0520/D |
AD16-30JC-1007/D |
|
AD16-30JC-0403 |
AD16-30JC-0701 |
AD16-30JC-0115/D |
AD16-30JC-0601/D |
AD16-30JC-1009/D |
|
AD16-30JC-0404 |
AD16-30JC-0702 |
AD16-30JC-0117/D |
AD16-30JC-0603/D |
AD16-30JC-1011/D |
|
AD16-30JC-0405 |
AD16-30JC-0703 |
AD16-30JC-0119/D |
AD16-30JC-0604/D |
AD16-30JC-1013/D |
|
AD16-30JC-0406 |
AD16-30JC-0704 |
AD16-30JC-0120/D |
AD16-30JC-0606/D |
AD16-30JC-1015/D |
|
AD16-30JC-0407 |
AD16-30JC-0705 |
AD16-30JC-0202/D |
AD16-30JC-0607/D |
AD16-30JC-1017/D |
|
AD16-30JC-0408 |
AD16-30JC-0706 |
AD16-30JC-0204/D |
AD16-30JC-0608/D |
AD16-30JC-1018/D |
|
AD16-30JC-0409 |
AD16-30JC-0707 |
AD16-30JC-0205/D |
AD16-30JC-0609/D |
AD16-30JC-1019/D |
|
AD16-30JC-0410 |
AD16-30JC-0708 |
AD16-30JC-0207/D |
AD16-30JC-0610/D |
AD16-30JC-1020/D |
|
AD16-30JC-0411 |
AD16-30JC-0709 |
AD16-30JC-0208/D |
AD16-30JC-0611/D |
AD16-30JC-0903/D |
|
AD16-30JC-0412 |
AD16-30JC-0710 |
AD16-30JC-0209/D |
AD16-30JC-0612/D |
AD16-30JC-0905/D |
|
AD16-30JC-0413 |
AD16-30JC-0711 |
AD16-30JC-0210/D |
AD16-30JC-0613/D |
AD16-30JC-0907/D |
|
AD16-30JC-0414 |
AD16-30JC-0712 |
AD16-30JC-0211/D |
AD16-30JC-0614/D |
AD16-30JC-0909/D |
|
AD16-30JC-0415 |
AD16-30JC-0713 |
AD16-30JC-0212/D |
AD16-30JC-0615/D |
AD16-30JC-0901/D |
|
AD16-30JC-0416 |
AD16-30JC-0714 |
AD16-30JC-0215/D |
AD16-30JC-0616/D |
AD16-30JC-0902/D |
|
AD16-30JC-0417 |
AD16-30JC-0715 |
AD16-30JC-0216/D |
AD16-30JC-0617/D |
AD16-30JC-0904/D |
|
AD16-30JC-0418 |
AD16-30JC-0716 |
AD16-30JC-0217/D |
AD16-30JC-0618/D |
AD16-30JC-0906/D |
|
AD16-30JC-0419 |
AD16-30JC-0717 |
AD16-30JC-0219/D |
AD16-30JC-0619/D |
AD16-30JC-0908/D |
|
AD16-30JC-0420 |
AD16-30JC-0718 |
AD16-30JC-0220/D |
AD16-30JC-0620/D |
AD16-30JC-0910/D |
