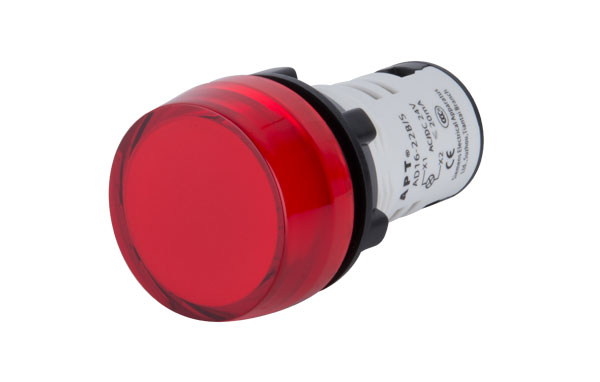

APT/上海二工AD16-22B指示灯参数说明
AD16-22系列指示灯采用高亮度纯色LED发光芯片为光源，寿命长，耗能低，体积小，重量轻，亮度高，可靠性好，造型美观和制造精巧，适用于电力、电讯、机床、船舶、纺织、印刷、矿山机械等设备的线路中作指示信号、预告信号、事故信号及其他指示用信号。
开孔尺寸：φ22.5mm，可通过选用变径圈来实现φ25mm、φ30mm的孔径;
灯罩为整体式（厚），五种颜色，明确指示不同工作状态；
发光体采用纯色高亮LED芯片，色彩纯正；
零部件采用进口材料，坚固耐用，耐磨损;
内置螺钉式接线、方便。
工频耐压：AC1890V 50Hz .5s
绝缘电阻≥100MΩ。
交流指示灯允许电压波动±20%
连续工作寿命≥30000H
使用频率AC50～60Hz
环境温度：-25℃～+55℃;
相比漏电起痕指数CTI≥175
空气相对温度≤98%
在振动频率为2-80Hz加速度为0.7g下能正常工作；
污染等级为3级，安装类别为Ⅲ类；
有“TH”标志的能在湿热带环境下工作。
防护等级：IP54
安装地点的海拔：不超过 2000米
APT/上海二工AD16-22B指示灯型号一览
|
型号 |
型号 |
型号 |
型号 |
型号 |
|
AD16-22B/y28-H |
AD16-22B/g26 |
AD16-22B/w28-TH |
AD16-22B/r31-K-TH |
AD16-22BS99/w32 |
|
AD16-22B/y28-K |
AD16-22B/g26S |
AD16-22B/w29 |
AD16-22B/w22 |
AD16-22BS99/g23 |
|
AD16-22B/y28-TH |
AD16-22B/g26S-K |
AD16-22B/w30 |
AD16-22B/b22 |
AD16-22BS99/r32 |
|
AD16-22B/y29 |
AD16-22B/g26S-TH |
AD16-22B/w31 |
AD16-22B/b25 |
AD16-22BS99/g32-TH |
|
AD16-22B/y31 |
AD16-22B/g26-TH |
AD16-22B/w31-H |
AD16-22B/r32-H |
AD16-22B/r23S-K |
|
AD16-22B/y31-H |
AD16-22B/g27 |
AD16-22B/w31S |
AD16-22B/g31S-TH-H |
AD16-22B/y31-K-TH |
|
AD16-22B/y31-K |
AD16-22B/g27S |
AD16-22B/w31S-H |
AD16-22B/w31S-TH-H |
AD16-22B/w31-K-TH |
|
AD16-22B/y31S-K |
AD16-22B/g28 |
AD16-22B/w31S-K |
AD16-22B/b31-K |
AD16-22B/w31-IP65 |
|
AD16-22B/y31S-RS |
AD16-22B/g28-K |
AD16-22B/w31S-TH |
AD16-22B/g24-TH |
AD16-22BF/b23 |
|
AD16-22B/y31S-TH |
AD16-22B/g28-TH |
AD16-22B/w31-TH |
AD16-22BF/rg27 |
AD16-22B/g28-IP65 |
|
AD16-22B/y31-TH |
AD16-22B/g31-H |
AD16-22B/w32 |
AD16-22BS99/w31S |
AD16-22B/w28-IP65 |
|
AD16-22B/y32 |
AD16-22B/g31-K |
AD16-22B/w32-H |
AD16-22BS99/y31S |
AD16-22B/r28-IP65 |
|
AD16-22B/Y32S |
AD16-22B/g31S |
AD16-22B/w32S |
AD16-22B/w29-TH |
AD16-22B/g31-TH-MTO |
|
AD16-22B/y32-TH |
AD16-22B/g31S-K |
AD16-22B/w32S-TH |
AD16-22BS99/w29 |
AD16-22B/r31-TH-MTO |
|
AD16-22BF/b31 |
AD16-22B/g31S-TH |
AD16-22B/w32-TH |
AD16-22B/w31-K |
AD16-22B/w32-K |
|
AD16-22BF/g23 |
AD16-22B/g31-TH |
AD16-22B/y21 |
AD16-22B/b26-TH |
AD16-22BF/rg32 |
|
AD16-22BF/g23-TH |
AD16-22B/g32 |
AD16-22B/y21S |
AD16-22B/b28-H |
AD16-22B/b28-EP |
|
AD16-22BF/g26 |
AD16-22B/g32-H |
AD16-22B/y22 |
AD16-22B/w28-H |
AD16-22BS99/w32S-TH |
|
AD16-22BF/g31 |
AD16-22B/g32-K |
AD16-22B/y22S |
AD16-22B/g28-H |
AD16-22BS99/g32S-TH |
|
AD16-22BF/g32 |
AD16-22B/g32S |
AD16-22B/y23 |
AD16-22B/r31S-H-IP65 |
AD16-22B/w31S-IP65 |
|
AD16-22BF/gy23 |
AD16-22B/g32-TH |
AD16-22B/y23-H |
AD16-22B/g31S-H-IP65 |
AD16-22BF/wr31 |
|
AD16-22BF/r22 |
AD16-22B/r21 |
AD16-22B/y23S |
AD16-22B/w31S-H-IP65 |
AD16-22BF/w26 |
|
AD16-22BF/r23 |
AD16-22B/r21S |
AD16-22B/y23S-H |
AD16-22B/w22S |
AD16-22BF/w30 |
|
AD16-22BF/r23-TH |
AD16-22B/r22 |
AD16-22B/y23S-K |
AD16-22BF/o23 |
AD16-22B/g26-EP |
|
AD16-22BF/r26 |
AD16-22B/r22S |
AD16-22B/y23S-TH |
AD16-22BF/r21 |
AD16-22B/w26-EP |
|
AD16-22BF/r28 |
AD16-22B/r22S-K |
AD16-22B/y23-TH |
AD16-22B/b23S-TH |
AD16-22B/y26-EP |
|
AD16-22BF/r31 |
AD16-22B/r22S-TH |
AD16-22B/y24 |
AD16-22B/g31-H-TH |
AD16-22B/r26-EP |
|
AD16-22BF/r31-TH |
AD16-22B/r22-TH |
AD16-22B/y24S |
AD16-22B/w31-H-TH |
AD16-22BF/rg28-H |
|
AD16-22BF/rg23 |
AD16-22B/r23 |
AD16-22B/y25S |
AD16-22BFS99/g23-TH |
AD16-22B/y32S-H |
|
AD16-22BF/rg26 |
AD16-22B/r23-H |
AD16-22B/y26 |
AD16-22B/w24S |
AD16-22B/r32S-H |
|
AD16-22BF/rg28 |
AD16-22B/r23-K-TH |
AD16-22B/y26-K |
AD16-22BF/g28 |
AD16-22BS99/r23 |
|
AD16-22BF/rg31 |
AD16-22B/r23S |
AD16-22B/y26S |
AD16-22B/w23-K |
AD16-22BF/r31-H |
|
AD16-22BF/ry23 |
AD16-22B/r23S-H |
AD16-22B/y26S-K |
AD16-22BS25/r26-TH |
AD16-22BF/g31-H |
|
AD16-22BF/w23 |
AD16-22B/r23S-TH |
AD16-22B/y26-TH |
AD16-22BS24/g26-TH |
AD16-22BF/b26 |
|
AD16-22BF/w23-TH |
AD16-22B/r23-TH |
AD16-22B/y27 |
AD16-22BS99/y26-TH |
AD16-22BS99/r26S |
|
AD16-22BF/w31 |
AD16-22B/r24 |
AD16-22B/y27S |
AD16-22BS99/w26-TH |
AD16-22BS99/y26S |
|
AD16-22BF/w31-TH |
AD16-22B/r24S |
AD16-22B/y28 |
AD16-22B/w30-IP65 |
AD16-22BS99/w26S |
|
AD16-22BF/w32 |
AD16-22B/r25 |
AD16-22B/g31 |
AD16-22B/r31S-IP65 |
AD16-22BS99/g26S |
|
AD16-22BF/y23 |
AD16-22B/r25S |
AD16-22B/r31S |
AD16-22B/r23S-IP65 |
AD16-22B/y25S-TH |
|
AD16-22BF/y23-TH |
AD16-22B/r26 |
AD16-22BFS99/r31 |
AD16-22B/w26-H-TH |
AD16-22B/w31-K80 |
|
AD16-22BF/y31 |
AD16-22B/r26S |
AD16-22B/b21 |
AD16-22BF/y31-TH |
AD16-22BS99/y23 |
|
AD16-22BF/yg23 |
AD16-22B/r26S-K |
AD16-22B/y25-TH |
AD16-22BS99/g31 |
AD16-22B/y25S-K |
|
AD16-22BS1/g23S |
AD16-22B/r26-TH |
AD16-22BF/y26 |
AD16-22B/g22S-K |
AD16-22B/w31-K60 |
|
AD16-22BS99/g31-TH |
AD16-22B/r27 |
AD16-22B/y25 |
AD16-22B/r32S-H-TH |
AD16-22B/y31-K60 |
|
AD16-22BS99/r22S |
AD16-22B/r27S |
AD16-22B/R22S-RS |
AD16-22B/w32S-H-TH |
AD16-22B/g31-K60 |
|
AD16-22BS99/r31S |
AD16-22B/r28 |
AD16-22B/R26S-TH |
AD16-22B/w23S-H-TH |
AD16-22B/y23-K |
|
AD16-22B/y31S |
AD16-22B/r28-K |
AD16-22BS99/y23S |
AD16-22B/g23S-H-TH |
AD16-22B/b23-K |
|
AD16-22B/b23 |
AD16-22B/r28-TH |
AD16-22BS2/r32 |
AD16-22B/y23S-H-TH |
AD16-22B/b31-EP |
|
AD16-22B/b23S |
AD16-22B/r29 |
AD16-22BS1/g32 |
AD16-22B/r23S-H-TH |
AD16-22BFS99/y31 |
|
AD16-22B/b23-TH |
AD16-22B/r31 |
AD16-22BS1/g28 |
AD16-22B/g29 |
AD16-22BFS99/g31 |
|
AD16-22B/b24 |
AD16-22B/r31-H |
AD16-22BS2/r28 |
AD16-22BS99/w31 |
AD16-22B/r31-K100 |
|
AD16-22B/b25S |
AD16-22B/r31-K |
AD16-22BS99/y28 |
AD16-22BF/g31-TH |
AD16-22B/w31-K100 |
|
AD16-22B/b26 |
AD16-22B/r31S-K |
AD16-22B/r25S-RS |
AD16-22BF/rg23-H |
AD16-22B/y31-K100 |
|
AD16-22B/b26S |
AD16-22B/r31S-RS |
AD16-22B/g25S-RS |
AD16-22BF/r29 |
AD16-22B/g31-K100 |
|
AD16-22B/b27S-TH |
AD16-22B/r31S-TH |
AD16-22B/r28-H |
AD16-22B/r25-TH |
AD16-22B/g23-IP65 |
|
AD16-22B/b28 |
AD16-22B/r31-TH |
AD16-22B/g27-TH |
AD16-22B/r24-K |
AD16-22B/w23-IP65 |
|
AD16-22B/b31 |
AD16-22B/r32 |
AD16-22B/g27-K |
AD16-22B/g24-K |
AD16-22B/w36S |
|
AD16-22B/b31S |
AD16-22B/r32S |
AD16-22B/r27-K |
AD16-22B/w24-K |
AD16-22BS99/w31S-TH |
|
AD16-22B/b31S-K |
AD16-22B/r32-K |
AD16-22B/r27-TH |
AD16-22B/r23-K |
AD16-22BS99/g31S-TH |
|
AD16-22B/b31S-RS |
AD16-22B/r32S-TH |
AD16-22BF/r32 |
AD16-22B/g23-K |
AD16-22BF/wy31 |
|
AD16-22B/b31-TH |
AD16-22B/r32-TH |
AD16-22B/w26-K |
AD16-22BS14/w31S-TH |
AD16-22B/g28-EP |
|
AD16-22B/b32 |
AD16-22B/w21 |
AD16-22B/y21-TH |
AD16-22BS99/w28 |
AD16-22B/g31-EP |
|
AD16-22B/b32S |
AD16-22B/w21S |
AD16-22BS99/w31-TH |
AD16-22B/r23-IP65 |
AD16-22B/r28-EP |
|
AD16-22B/g21 |
AD16-22B/w23 |
AD16-22BS99/w32-TH |
AD16-22B/w36 |
AD16-22B/r31-EP |
|
AD16-22B/g21S |
AD16-22B/w23-H |
AD16-22B/r31S-H |
AD16-22B/r36 |
AD16-22B/w31-EP |
|
AD16-22B/g21-TH |
AD16-22B/w23S |
AD16-22B/g32S-H |
AD16-22B/r24S-TH |
AD16-22B/y28-EP |
|
AD16-22B/g22 |
AD16-22B/w23S-H |
AD16-22B/g31S-H |
AD16-22B/g26-TH-EP |
AD16-22B/y31-EP |
|
AD16-22B/g22S |
AD16-22B/w23S-TH |
AD16-22B/b27 |
AD16-22B/y26-TH-EP |
AD16-22B/b30 |
|
AD16-22B/g22-TH |
AD16-22B/w23-TH |
AD16-22BS99/y26 |
AD16-22B/w26-TH-EP |
AD16-22B/r30 |
|
AD16-22B/g23 |
AD16-22B/w24 |
AD16-22B/g32S-TH |
AD16-22B/r26-TH-EP |
AD16-22B/y31S-IP65 |
|
AD16-22B/g23-H |
AD16-22B/w25 |
AD16-22BS99/b31-TH |
AD16-22B/b31-TH-EP |
AD16-22B/g31S-IP65 |
|
AD16-22B/g23-K-TH |
AD16-22B/w25S |
AD16-22B/r26-K40 |
AD16-22B/b26-TH-EP |
AD16-22BF/w21 |
|
AD16-22B/g23S |
AD16-22B/w26 |
AD16-22B/r31-K40 |
AD16-22B/g31S-RS |
AD16-22B/y23-K-TH |
|
AD16-22B/g23S-H |
AD16-22B/w26S |
AD16-22B/r31-K80 |
AD16-22BF/w25 |
AD16-22B/w26S-TH |
|
AD16-22B/g23S-TH |
AD16-22B/w26-TH |
AD16-22B/r26-K80 |
AD16-22B/g31S-K100V |
AD16-22B/b31S-TH |
|
AD16-22B/g23-TH |
AD16-22B/w27 |
AD16-22B/W26S-TH-H |
AD16-22B/r31S-K100V |
AD16-22B/b24S |
|
AD16-22B/g24 |
AD16-22B/w27S |
AD16-22B/r26-K60 |
AD16-22B/y31-IP65 |
AD16-22B/b21S |
|
AD16-22B/g24S |
AD16-22B/w27S-TH |
AD16-22B/r31-K60 |
AD16-22BF/w28 |
AD16-22B/b22S |
|
AD16-22B/g25 |
AD16-22B/w28 |
AD16-22BF/Y23-CW |
AD16-22B/w28-EP |
AD16-22BS99/r26 |
|
AD16-22B/g25S |
AD16-22B/w28-K |
AD16-22B/g31-K-TH |
AD16-22B/y31S-H |
AD16-22BS99/g26 |
