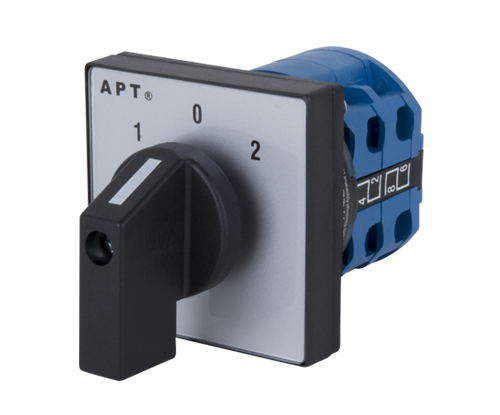

APT/西门子LW39-16B转换开关介绍
LW39-16B系列万转广泛应用于电气控制屏柜和机电控制中测量、控制等使用场合。外观小巧，美观新颖，结构可靠。采用国际流行内置接线方式，可靠。
内置接线，可靠
操作角度30°、45°、60°、90°
触头系统大节数12节，推荐使用不超过8节
APT/西门子LW39-16B转换开关参数
额定绝缘电压Ui：690V
约定发热电流Ith：16A
交流工作电流：AC-15 380V/1.8A
直流工作电流：DC-13 220V/0.2A
工频耐压：2500V, 1min
交流电寿命：20万次
直流电寿命：10万次
机械寿命：30万次
头部防护等级：IP40
海拔高度不超过2000米
环境温度-25℃～+55℃
空气相对湿度不超过90%
安装类别为Ⅲ
污染等级为3级
|
型号 |
型号 |
型号 |
型号 |
|
LW39-16B-3AB-02/1 |
LW39-16B-3JD-2330332X/4 |
LW39-16B-6AC-04/2B62 |
LW39-16BSNZ-4OB-206/4 |
|
LW39-16B-3AB-02/1P |
LW39-16B-3JD-5030305/7 |
LW39-16B-6AC-04/2CkB61 |
LW39-16B-3IE-110312122X/2 |
|
LW39-16B-3AE-01111/2 |
LW39-16B-3JD-5030305/7P |
LW39-16B-6AC-04/2CkP |
LW39-16BSNZ-9OB-20/1 |
|
LW39-16B-3AE-01111/2P |
LW39-16B-3JD-5030305X/7 |
LW39-16B-6AC-04/2Dk |
LW39-16BSNZ-4OB-505A/5 |
|
LW39-16B-3AE-01111X/2 |
LW39-16B-3JE-11121223/2Bk |
LW39-16B-6AC-04/2DkP |
LW39-16B-9OB-02/1 |
|
LW39-16B-3AG-01x6/3 |
LW39-16B-3JE-11121223/4 |
LW39-16B-6AC-04/2Gr |
LW39-16B-6KC-505J/5 |
|
LW39-16B-3AG-01x6/3P |
LW39-16B-3JE-11121223/4P |
LW39-16B-6AC-04/2P |
LW39-16BSNZ-4AB-22/2 |
|
LW39-16B-3AG-01x6X/3 |
LW39-16B-3JE-11121223X/4 |
LW39-16B-6AC-11X/1 |
LW39-16B-3OC-2220A/3 |
|
LW39-16B-3AI-01x8/4 |
LW39-16B-3JE-1x8/4 |
LW39-16B-6AC-11X/1B58 |
LW39-16BSNZ-A2-02/1 |
|
LW39-16B-3AI-01x8/4P |
LW39-16B-3JE-1x8/4P |
LW39-16B-6AC-11X/1B62 |
LW39-16B-4AB-0C/6 |
|
LW39-16B-3AI-01x8X/4 |
LW39-16B-3JE-1x8X/4 |
LW39-16B-6AC-11X/1Bk |
LW39-16BNZ-A2-33/3 |
|
LW39-16B-3AI-101121223/2 |
LW39-16B-3JF-01x8/4 |
LW39-16B-6AC-11X/1Ck |
LW39-16BNZ-4OB-404/3 |
|
LW39-16B-3AI-101121223/2P |
LW39-16B-3JF-01x8/4P |
LW39-16B-6AC-11X/1-TH |
LW39-16B-3OB-101A/1 |
|
LW39-16B-3AI-101121223X/2 |
LW39-16B-3JF-01x8X/4 |
LW39-16B-6AC-13/2 |
LW39-16B-6IE-44444/4CK-TH |
|
LW39-16B-3AJ-0112122312/2 |
LW39-16B-3JF-101-7J/4 |
LW39-16B-6AC-13/2P |
LW39-16B-9GC-086X/4 |
|
LW39-16B-3IE-43211234/3 |
LW39-16B-3JF-101-7J/4P |
LW39-16B-6AC-02/1 |
LW39-16BSNZ-4GC-11211B/3 |
|
LW39-16B-3IE-43211234/3P |
LW39-16B-3JF-101-7JX/4 |
LW39-16BSNZ-9OB-08/4 |
LW39-16BSNZ-B2-202A/2 |
|
LW39-16B-3IE-43211234X/3 |
LW39-16B-3JH-0-A/5 |
LW39-16BP-6JD-6066A/6-BK |
LW39-16B-3OB-121/2 |
|
LW39-16B-3JC-012345/3 |
LW39-16B-3JH-0-A/5P |
LW39-16B-6KC-414/5 |
LW39-16B-6AB-24/3 |
|
LW39-16B-3JC-012345/3P |
LW39-16B-3JH-0-AX/5 |
LW39-16BSNZ-4OB-101/1 |
LW39-16B-3KC-1X5J/3 |
|
LW39-16B-3JC-012345X/3 |
LW39-16B-3KC-01111/2 |
LW39-16B-3OB-202A/2 |
LW39-16BSNZ-4OB-101A/1 |
|
LW39-16B-3JC-111111/3 |
LW39-16B-3KC-01111/2P |
LW39-16BSNZ-40C-1111/2 |
LW39-16BYM-B2-202X/2-BK48 |
|
LW39-16B-3JC-111111/3P |
LW39-16B-3KC-01111X/2 |
LW39-16BYM-B2-202/2-BK48-A31 |
LW39-16BNZ-ZA-30202/4 |
|
LW39-16B-3JC-111111X/3 |
LW39-16B-3KC-02222/4 |
LW39-16B-6IE-1X5J/3 |
LW39-16BNZ-4OB-121X/2 |
|
LW39-16B-3JC-1x6/3 |
LW39-16B-3KC-02222/4P |
LW39-16BNZ-4OB-202A/2 |
LW39-16B-6AC-55/5 |
|
LW39-16B-3JC-1x6/3P |
LW39-16B-3KC-02222X/4 |
LW39-16B-3KC-33133/3 |
LW39-16B-3KC-24042/4 |
|
LW39-16B-3JC-1x6X/3 |
LW39-16B-3KC-11011/2 |
LW39-16B-3JI-1XC/6 |
LW39-16BSNZ-B2-101/1 |
|
LW39-16B-3JD-01x6/3 |
LW39-16B-3KC-11011/2B12 |
LW39-16BSNZ-4OB-202A/2 |
LW39-16BSNZ-4AB-22B/2 |
|
LW39-16B-3JD-01x6/3P |
LW39-16B-3KC-11011/2P |
LW39-16BYM-ZA53335X/5P-BK |
LW39-16B-6OB-60/3 |
|
LW39-16B-3JD-01x6X/3 |
LW39-16B-3KC-11011/3 |
LW39-16B-3OB-112/2 |
LW39-16BNZ-9GA-22B/2 |
|
LW39-16B-3JD-1012345/3 |
LW39-16B-3KC-11011/3P |
LW39-16B-4OB-222J/3 |
LW39-16B-3OB-103/2 |
|
LW39-16B-3JD-1012345/3P |
LW39-16B-3KC-11011X/2 |
LW39-16BNZ-ZA-52225/4 |
LW39-16B-3OK-21-B/7 |
|
LW39-16B-3JD-1012345X/3 |
LW39-16B-3KC-11011X/2B12 |
LW39-16BNZ-4AB-08/6 |
LW39-16B-3KB-1114X/3 |
|
LW39-16B-3JD-101-5/3 |
LW39-16B-6AC-02/1B61 |
LW39-16BSNZ-4OB-505/5 |
LW39-16B-4GG-00000002A/6 |
|
LW39-16B-3JD-101-5/3P |
LW39-16B-6AC-02/1B62 |
LW39-16B-3JE-1X8JX/8P |
LW39-16BP-9GG-2022X/2 |
|
LW39-16B-3JD-101-5X/3 |
LW39-16B-6AC-02/1Gr |
LW39-16B-9AA-0122/2-CK |
LW39-16BSNZ-4GC-22222/4 |
|
LW39-16B-3JD-1110111/3 |
LW39-16B-6AC-02/1P |
LW39-16BNZ-9OB-08/4 |
LW39-16BSNZ-ZA-11211B/3 |
|
LW39-16B-3JD-1110111/3P |
LW39-16B-6AC-02/1P-TH |
LW39-16B-ZA31211/4 |
LW39-16B-ZC-1012/2 |
|
LW39-16B-3JD-1110111X/3 |
LW39-16B-6AC-02/1-TH |
LW39-16B-4AB-06/3 |
LW39-16BSNZ-4OB-E08/7 |
|
LW39-16B-3JD-1111111/4 |
LW39-16B-6AC-03/2 |
LW39-16B-ZJ/1a.4.20/5 |
LW39-16B-ZJ/1a.4.6a.20/7 |
|
LW39-16B-3JD-1111111/4P |
LW39-16B-6AC-03/2A28 |
LW39-16BSNZ-4OB-707A/7 |
LW39-16B-9OB-04/2 |
|
LW39-16B-3JD-1111111X/4 |
LW39-16B-6AC-03/2Gr |
LW39-16B-9OB-06/3 |
LW39-16B-3JI-224-D/12 |
|
LW39-16B-3JD-1x7/4 |
LW39-16B-6AC-03/2P |
LW39-16B-3AI-012-8/4 |
LW39-16BSNZ-4OB-202/2 |
|
LW39-16B-3JD-1x7/4P |
LW39-16B-6AC-03X/2 |
LW39-16BSNZ-B2-202/2 |
LW39-16B-4FD-2330332/4 |
|
LW39-16B-3JD-1x7X/4 |
LW39-16B-6AC-03X/2A28 |
LW39-16B-3OJ-324-C/8 |
LW39-16BNZ-B2-202X/2 |
|
LW39-16B-3JD-2220222J/3 |
LW39-16B-6AC-03X/2Gr |
LW39-16B-6KC-727/6 |
LW39-16BSNZ-9OB-0E/7 |
|
LW39-16B-3JD-2220222J/3P |
LW39-16B-6AC-04/2 |
LW39-16BNZ-9GA-22/2 |
LW39-16B-3JE-21-7/9 |
|
LW39-16B-3JD-2220222JX/3 |
LW39-16B-6AC-04/2ArB62 |
LW39-16B-3KB-1103X/3 |
LW39-16B-9GC-909/9 |
|
LW39-16B-3JD-2330332/4 |
LW39-16B-6AC-04/2ArP |
LW39-16B-4GE-2220222J/3-BK48 |
LW39-16BNZ-9OB-0E/7 |
|
LW39-16B-3JD-2330332/4P |
LW39-16B-6AC-04/2B61 |
LW39-16B-9OB-64X/5 |
LW39-16B-9AG-3333X/3 |
