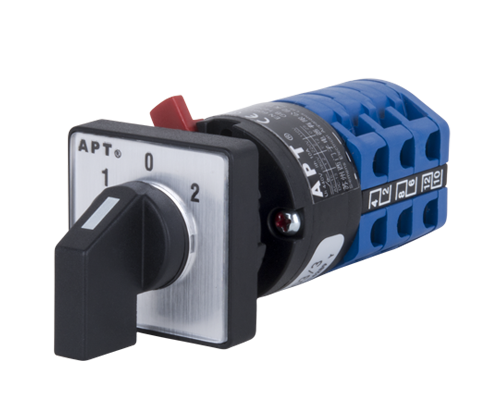

APT/西门子LW39-10转换开关介绍
LW39-10系列广泛适用于安装空间较小的场合，采用单孔安装方式，安装孔径为ψ16mm或ψ22.5mm。采用国际流行的内置接线方式，可靠。头部防护等级IP65。
采用单孔安装方式
外观小巧，美观新颖，结构可靠
操作角度30°、45°、90°
触头系统节数8节
APT/西门子LW39-10转换开关参数
额定绝缘电压Ui：440V
约定发热电流Ith：10A
交流工作电流：AC-15:110V/4A 220V/2A 380V/1.2A
直流工作电流：DC-13:110V/0.25A 220V/0.12A
工频耐压：2500V, 1min
交流电寿命：20万次
直流电寿命：10万次
机械寿命：30万次
头部防护等级：IP65
海拔高度不超过2000米
环境温度-25℃～+55℃
空气相对湿度不超过90%
安装类别为Ⅲ
污染等级为3级
APT/西门子LW39-10转换开关型号一览
|
型号 |
型号 |
型号 |
型号 |
|
LW39-10-4OC-2222/4 |
LW39-10-4OB-211/2P |
LW39-10-9GA-02/1 |
LW39-10-Z/7 |
|
LW39-10-6AC-02/1 |
LW39-10-4OB-211X/2 |
LW39-10-9GA-02/1P |
LW39-10-X/7 |
|
LW39-10-4OC-0112JX/1 |
LW39-10-4OB-303/3 |
LW39-10-9OB-22/2P |
LW39-10-Z/1 |
|
LW39-10-4AB-06/3 |
LW39-10-4OB-303/3P |
LW39-10-9OB-22X/2 |
LW39-10-X/5 |
|
LW39-10-9AC-33/3 |
LW39-10-4OB-303X/3 |
LW39-10-A1-02/1 |
LW39-10-X/8 |
|
LW39-10-9AC-11/1 |
LW39-10-4OC-1033/4 |
LW39-10-A1-02/1P |
LW39-10-Z/8 |
|
LW39-10-9GC-222/3 |
LW39-10-4OC-1033/4P |
LW39-10-B1-012/1 |
LW39-10-X/3 |
|
LW39-10-6OB-11J/1 |
LW39-10-4OC-1033X/4 |
LW39-10-B1-012/1P |
LW39-10-X/6 |
|
LW39-10-9GC-101/1 |
LW39-10-4OC-1111/2 |
LW39-10-LH3/4 |
LW39-10-Z/5 |
|
LW39-10-9GA-22/2 |
LW39-10-4OC-1111/2P |
LW39-10-LH3/4P |
LW39-10-X/1 |
|
LW39-10-6KC-213X/2 |
LW39-10-4OC-1111X/2 |
LW39-10-LH3/4P-TH |
LW39-10-X/4 |
|
LW39-10-9AC-44/4 |
LW39-10-6AC-22/2 |
LW39-10-LH3/4-TH |
LW39-10-Z/3 |
|
LW39-10-9AC-11A/1P |
LW39-10-6AC-22/2P |
LW39-10-WS-2012/4 |
LW39-10-Z/6 |
|
LW39-10-6OB-11J/1P |
LW39-10-6AC-22X/2 |
LW39-10-WS-2012/4P |
LW39-10-6KC-202A/2 |
|
LW39-10-LH2/4 |
LW39-10-6JD-0111/2 |
LW39-10-YH2/3 |
LW39-10-6JD-2022X/3 |
|
LW39-10-6OB-06/3 |
LW39-10-6JD-0111/2P |
LW39-10-YH2/3P |
LW39-10-Z/2 |
|
LW39-10-9AC-03/2 |
LW39-10-6JD-0111X/2 |
LW39-10-YH4/2P-TH |
LW39-10-X/2 |
|
LW39-10-9GA-33/3 |
LW39-10-6JD-1111/2P |
LW39-10-YH4/2-TH |
LW39-10-3OC-A011X/6 |
|
LW39-10-6OB-11/1 |
LW39-10-6JD-1111X/2 |
LW39-10-YH5/4 |
LW39-10-B1-101X/1 |
|
LW39-10-6OB-02/1 |
LW39-10-6KC-101/1 |
LW39-10-YH5/4P |
LW39-10-3OB-101X/1 |
|
LW39-10-YH12/2 |
LW39-10-6KC-101/1P |
LW39-10-B1-202X/2 |
LW39-10-X/1P-TH |
|
LW39-10-9GC-303/3 |
LW39-10-6KC-101X/1 |
LW39-10-6KC-404X/4 |
LW39-10-X/2P-TH |
|
LW39-10-6AC-06/3 |
LW39-10-6KC-111J/2 |
LW39-10-4AB-11A/1 |
LW39-10-X/3P-TH |
|
LW39-10-9GC-111/2 |
LW39-10-6KC-111J/2P |
LW39-10-6OB-33J/3 |
LW39-10-X/4P-TH |
|
LW39-10-9GC-202/2 |
LW39-10-6KC-111JX/2 |
LW39-10-4OB-101A/1 |
LW39-10-X/5P-TH |
|
LW39-10-9GA-44/4 |
LW39-10-6KC-202/2 |
LW39-10-9AC-22X/2 |
LW39-10-X/6P-TH |
|
LW39-10-YH3/3 |
LW39-10-6KC-202/2P |
LW39-10-X/1P |
LW39-10-X/7P-TH |
|
LW39-10-9GA-11/1 |
LW39-10-6KC-202D/2 |
LW39-10-Z/6P |
LW39-10-X/8P-TH |
|
LW39-10-6OB-04/2 |
LW39-10-6KC-202D/2P |
LW39-10-X/7P |
LW39-10-Z/1P-TH |
|
LW39-10-9AC-22/2 |
LW39-10-6KC-202DX/2 |
LW39-10-X/4P |
LW39-10-Z/2P-TH |
|
LW39-10-9GC-404/4 |
LW39-10-6KC-202X/2 |
LW39-10-Z/1P |
LW39-10-Z/3P-TH |
|
LW39-10-6AC-11/1 |
LW39-10-6KC-303/3 |
LW39-10-X/5P |
LW39-10-X/1-TH |
|
LW39-10-4AB-02/1 |
LW39-10-6KC-303/3P |
LW39-10-4OB-333J/5 |
LW39-10-X/2-TH |
|
LW39-10-6AC-04/2 |
LW39-10-6KC-303X/3 |
LW39-10-4OD-01111X/3 |
LW39-10-X/3-TH |
|
LW39-10-4OC-2221/2 |
LW39-10-6KC-313J/4 |
LW39-10-4AO-01112223X/3 |
LW39-10-X/4-TH |
|
LW39-10-4AB-11/1 |
LW39-10-6KC-313J/4P |
LW39-10-4OB-222X/3 |
LW39-10-X/5-TH |
|
LW39-10-4GD-2X6J/6 |
LW39-10-6KC-313JX/4 |
LW39-10-4OB-222J/3 |
LW39-10-X/6-TH |
|
LW39-10-4AB-04/2 |
LW39-10-6OB-11/1B109 |
LW39-10-X/6P |
LW39-10-X/7-TH |
|
LW39-10-4AB-22/2 |
LW39-10-6OB-11/1P |
LW39-10-Z/3P |
LW39-10-X/8-TH |
|
LW39-10-4AB-22/2P |
LW39-10-6OB-11X/1B109 |
LW39-10-X/3P |
LW39-10-Z/1-TH |
|
LW39-10-4AB-22X/2 |
LW39-10-6OB-22/2B109 |
LW39-10-X/2P |
LW39-10-Z/2-TH |
|
LW39-10-4OB-101/1 |
LW39-10-6OB-22/2B110 |
LW39-10-Z/7P |
LW39-10-Z/3-TH |
|
LW39-10-4OB-101/1P |
LW39-10-6OB-22/2P |
LW39-10-Z/4P |
LW39-10-Z/4-TH |
|
LW39-10-4OB-101X/1 |
LW39-10-6OB-22C/3 |
LW39-10-Z/5P |
LW39-10-Z/5-TH |
|
LW39-10-4OB-111J/2 |
LW39-10-6OB-22C/3P |
LW39-10-Z/2P |
LW39-10-Z/6-TH |
|
LW39-10-4OB-111J/2P |
LW39-10-6OB-22CX/3 |
LW39-10-Z/8P |
LW39-10-Z/7-TH |
|
LW39-10-4OB-111JX/2 |
LW39-10-6OB-22X/2B109 |
LW39-10-X/8P |
LW39-10-Z/8-TH |
|
LW39-10-4OB-121/2 |
LW39-10-6OB-22X/2B110 |
LW39-10-Z/4 |
LW39-10-4AB-33B/3P |
|
LW39-10-4OB-121/2P |
LW39-10-6OB-32/3 |
LW39-10-9OB-88J/8 |
LW39-10-4OB-303J/3P-RS |
|
LW39-10-4OB-121X/2 |
LW39-10-6OB-32/3P |
LW39-10-3AD-0111/2 |
LW39-10-6OB-22J/2-RS |
|
LW39-10-4OB-202/2 |
LW39-10-6OB-32X/3 |
LW39-10-4GC-1*5JX/3 |
LW39-10-4AB-02/1-A28-TK |
|
LW39-10-4OB-202/2P |
LW39-10-6OB-33/3 |
LW39-10E1111/2 |
LW39-10-4OB-202/2-G |
|
LW39-10-4OB-202J/2 |
LW39-10-6OB-33/3P |
LW39-10-6KC-404/4P |
LW39-10-X/1-TK |
|
LW39-10-4OB-202J/2P |
LW39-10-6OB-33J/3P-TH |
LW39-10-4OB-111/2 |
LW39-10-Z/1P-TK |
|
LW39-10-4OB-202JX/2 |
LW39-10-6OB-33J/3-TH |
LW39-10-9AC-22A/2 |
LW39-10-X/5-G |
|
LW39-10-4OB-202X/2 |
LW39-10-6OB-33JX/3-TH |
LW39-10-6KC-404/4 |
LW39-10-X/1P-TK |
|
LW39-10-4OB-211/2 |
LW39-10-6OB-33X/3 |
LW39-10-B1-202/2 |
