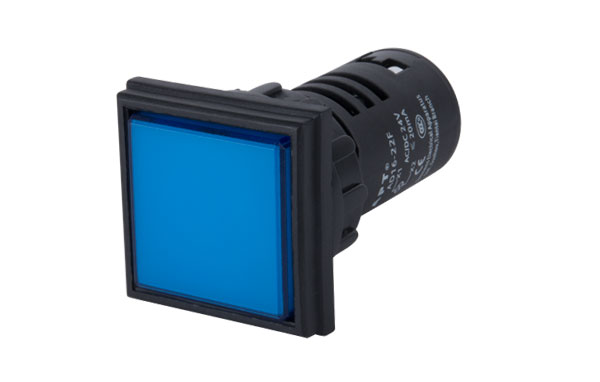

APT/上海二工AD16-22F指示灯参数说明
AD16-22系列指示灯采用高亮度纯色LED发光芯片为光源，寿命长，耗能低，体积小，重量轻，亮度高，可靠性好，造型美观和制造精巧，适用于电力、电讯、机床、船舶、纺织、印刷、矿山机械等设备的线路中作指示信号、预告信号、事故信号及其他指示用信号。
开孔尺寸：φ22.5mm，可通过选用变径圈来实现φ25mm、φ30mm的孔径;
头部形状为方形，五种颜色，明确指示不同工作状态；
发光体采用纯色高亮LED芯片，色彩纯正；
零部件采用进口材料，坚固耐用，耐磨损;
内置螺钉式接线、方便
工频耐压：AC1890V 50Hz .5s
绝缘电阻≥100MΩ。
交流指示灯允许电压波动±20%
连续工作寿命≥30000H
使用频率AC50～60Hz
环境温度：-25℃～+55℃;
相比漏电起痕指数CTI≥175
空气相对温度≤98%
在振动频率为2-80Hz加速度为0.7g下能正常工作；
污染等级为3级，安装类别为Ⅲ类；
有“TH”标志的能在湿热带环境下工作。
防护等级：IP40
安装地点的海拔：不超过 2000米
APT/上海二工AD16-22F指示灯参数说明
|
型号 |
型号 |
型号 |
型号 |
型号 |
|
AD16-22F/r28 |
AD16-22F/W31-TH |
AD16-22F/b23-CW |
AD16-22F/r30-RS |
AD16-22F/g31-K30 |
|
AD16-22F/r23 |
AD16-22F/w23-TH |
AD16-22F/y31-CW |
AD16-22F/g25-RS |
AD16-22F/r23-K6 |
|
AD16-22F/b23 |
AD16-22F/y23-TH |
AD16-22F/g31-CW |
AD16-22F/b29-RS |
AD16-22F/w23-K6 |
|
AD16-22F/b31 |
AD16-22F/r23-CW |
AD16-22FS99/r23 |
AD16-22F/y29-RS |
AD16-22F/y21 |
|
AD16-22F/g23 |
AD16-22F/y23-CW |
AD16-22FS99/g31 |
AD16-22FS99/y23 |
AD16-22F/g23-K6 |
|
AD16-22F/g23-TH |
AD16-22F/o23 |
AD16-22FS99/y31 |
AD16-22F/b21 |
AD16-22F/w23-K4 |
|
AD16-22F/g28 |
AD16-22F/w24 |
AD16-22F/b26 |
AD16-22F/w34 |
AD16-22F/g23-K4 |
|
AD16-22F/g31 |
AD16-22F/g26 |
AD16-22F/y26 |
AD16-22F/y34 |
AD16-22F/r23-K4 |
|
AD16-22F/g32 |
AD16-22F/g23-CW |
AD16-22F/r22 |
AD16-22F/b23-K |
AD16-22F/y26-K6 |
|
AD16-22F/g32-TH |
AD16-22F/r31-TH |
AD16-22F/r26-CW |
AD16-22F/g31-TH-EP |
AD16-22F/y23-K4 |
|
AD16-22F/r21 |
AD16-22F/o31 |
AD16-22F/g26-CW |
AD16-22FS99/g32 |
AD16-22F/w35-K40 |
|
AD16-22F/r23-TH |
AD16-22F/w23-K |
AD16-22F/y28-K |
AD16-22F/g23-K |
AD16-22FS99/r22 |
|
AD16-22F/r25 |
AD16-22F/r23-K |
AD16-22F/w23-H |
AD16-22F/y23-K |
AD16-22FS99/g22 |
|
AD16-22F/r26 |
AD16-22F/r27 |
AD16-22FS99/w21 |
AD16-22F/g31-K |
AD16-22FS99/y22 |
|
AD16-22F/r31 |
AD16-22F/g27 |
AD16-22FS99/g21 |
AD16-22F/g21 |
AD16-22FS99/b22 |
|
AD16-22F/r32 |
AD16-22FS99/b23 |
AD16-22FS99/r21 |
AD16-22F/b22 |
AD16-22F/y28-K60 |
|
AD16-22F/w21 |
AD16-22FS99/w23 |
AD16-22F/r24 |
AD16-22F/g30 |
AD16-22F/b28 |
|
AD16-22F/w23 |
AD16-22FS99/g23 |
AD16-22F/g24 |
AD16-22F/y30 |
AD16-22F/r31-K30 |
|
AD16-22F/w25 |
AD16-22FS99/g23-TH |
AD16-22F/y24 |
AD16-22F/w22 |
AD16-22FS99/g31-H |
|
AD16-22F/w26 |
AD16-22FS99/y32-TH |
AD16-22F/r31-CW |
AD16-22F/g35 |
AD16-22FS99/r31-H |
|
AD16-22F/w27 |
AD16-22FS99/r23-TH |
AD16-22F/y25 |
AD16-22F/w35 |
AD16-22F/r16 |
|
AD16-22F/w28 |
AD16-22FS99/w23-TH |
AD16-22F/r31-K6 |
AD16-22FS99/y26 |
AD16-22F/g16 |
|
AD16-22F/w29 |
AD16-22F/g31-TH |
AD16-22F/b31-H |
AD16-22FS99/y28 |
AD16-22F/y16 |
|
AD16-22F/w31 |
AD16-22FS99/w26 |
AD16-22FS99/y23-TH |
AD16-22F/y23-K6 |
AD16-22F/w28-TH |
|
AD16-22F/w32 |
AD16-22F/y22 |
AD16-22F/w31-H |
AD16-22F/w23-K-TH |
AD16-22F/g28-TH |
|
AD16-22F/w32-TH |
AD16-22F/g22 |
AD16-22F/g31-H |
AD16-22F/g23-K-TH |
AD16-22F/r35 |
|
AD16-22F/y23 |
AD16-22F/g31-RS |
AD16-22F/r31-H |
AD16-22F/y23-K-TH |
AD16-22F/r28-K60 |
|
AD16-22F/y28 |
AD16-22F/w31-K |
AD16-22F/y31-H |
AD16-22F/r23-K-TH |
AD16-22F/g28-K60 |
|
AD16-22F/y31 |
AD16-22F/g28-RS |
AD16-22FS99/r32 |
AD16-22FS99/r23-K |
AD16-22F/y31-TH |
|
AD16-22F/y32 |
AD16-22F/r28-RS |
AD16-22F/w30 |
AD16-22FS99/y32-K |
AD16-22F/b29 |
|
AD16-22FS2/g31 |
AD16-22F/r29 |
AD16-22F/b23-TH |
AD16-22F/g25 |
AD16-22F/y29 |
|
AD16-22FS2/r31 |
AD16-22FS99/w32 |
AD16-22F/r31-K |
AD16-22F/b23-K6 |
AD16-22F/r30 |
|
AD16-22FS99/r31 |
AD16-22F/b23-H |
AD16-22F/r23-H |
AD16-22F/w31-K30 |
|
|
AD16-22FS99/w31 |
AD16-22F/g34-TH |
AD16-22F/g23-H |
AD16-22F/g34 |
|
|
AD16-22FS99/y32 |
AD16-22F/w34-TH |
AD16-22FS99/b23-TH |
AD16-22F/r34 |
